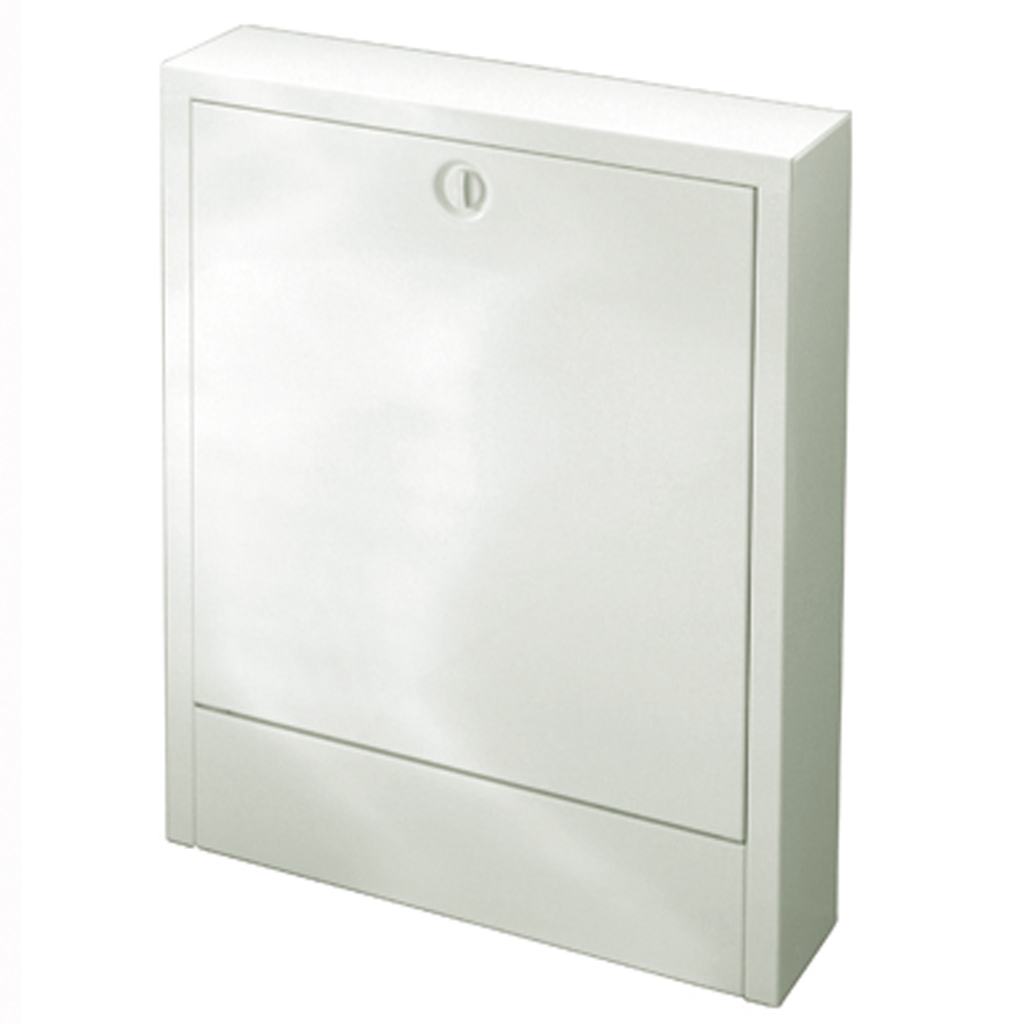

PRINETO Distributor cabinet s.m., size 4
To enclose the heating circuit manifold and control components, installation on the unfinished floor on the plastered wall, with rails and screws for manifold mounting, with mounting screws for easy installation of the terminal strip, cabinet, door and screed baffle plate white painted finish RAL
Description
To enclose the heating circuit manifold and control components, installation on the unfinished floor on the plastered wall, with rails and screws for manifold mounting, with mounting screws for easy installation of the terminal strip, cabinet, door and screed baffle plate white painted finish RAL 9010, Material: steel sheet, galvanised or painted
Dimensions:
Size 4, Width outside 731 mm Height variable: 623 – 795 mm, Insulation depth max. 140 mm, Depth: 126 mm,
Dimensions:
Size 4, Width outside 731 mm Height variable: 623 – 795 mm, Insulation depth max. 140 mm, Depth: 126 mm,
Specifications
| Warencode | 94032080 |
| Nettogewicht | 11.2 |
Attachments
PRINETO Transition 20x2,0-R3/4
Item No.
878341760
PRINETO Contact thermometer 0-60°C
Item No.
878386036
PRINETO Cuphin coupler 20
Item No.
878440220
PRINETO PPSU Coupler 25
Item No.
878240330
