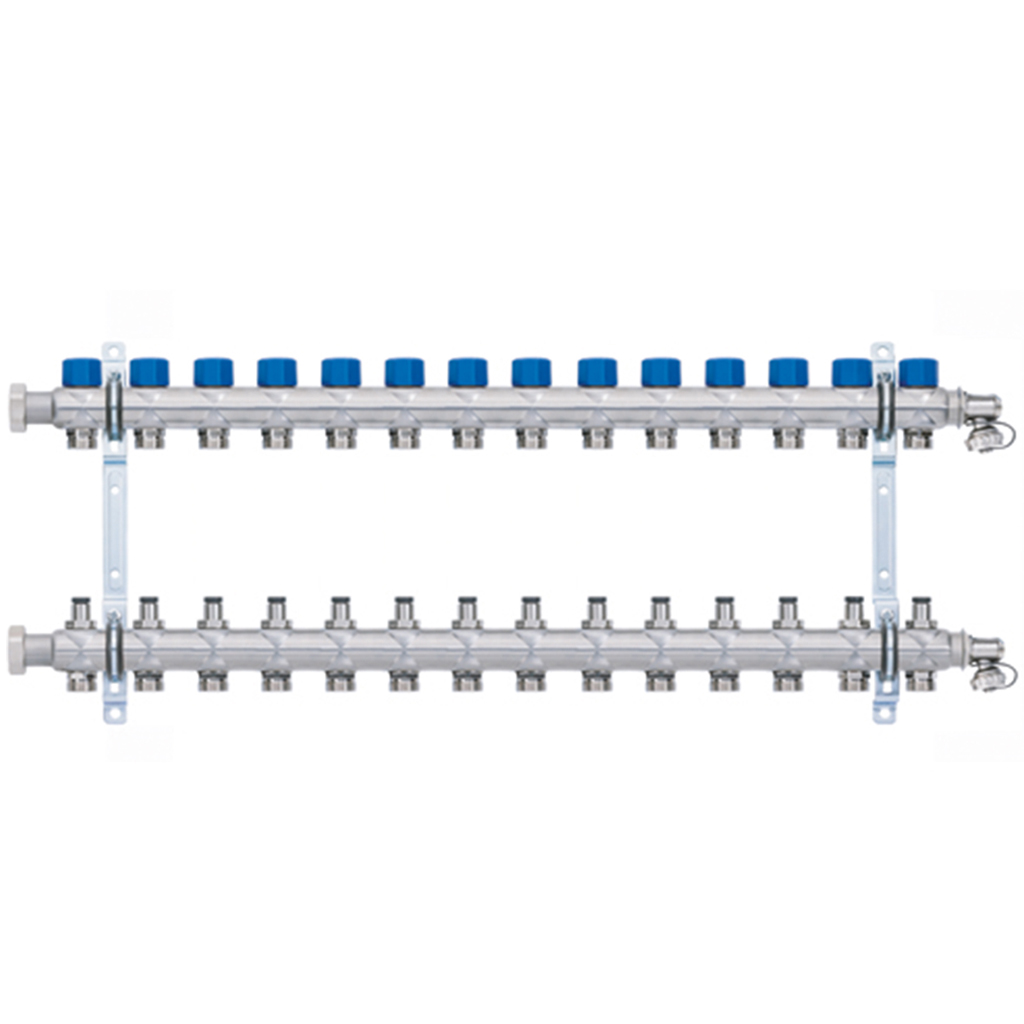

PRINETO Heating circuit distributor 14-fold with control valve

for distribution, shut-off and adjustment of the heating water flow of surface heating circuits consisting of:
2 manifold bars made of stainless steel pipe 35 x 1.5, screwed connection with union G 1 flat sealing suitable for e.g. ball valve (not included in delivery), filling and draining valve 3/4" with Eurocone 3/4" male, 2 sound-insulated manifold holders, heating circuit connections with Eurocone 3/4" male thread according to DIN V 3838, max. operating temperature: 70 °C, max. max. operating temperature: 70 °C, max. operating pressure: 4 bar, return with thermostatic valve inserts (connection thread M 30 x 1.5, kvs 2.75 m3/h, for later installation of 230 V actuators) and manual regulating cap, flow with integrated regulating and shut-off valves (kvs 2.88 m3/h, for hydraulic balancing)
Material: stainless steel 1.4301, nickel-plated brass, polyamide, EPDM

Overall length: 768 mm, for 14 heating circuits
